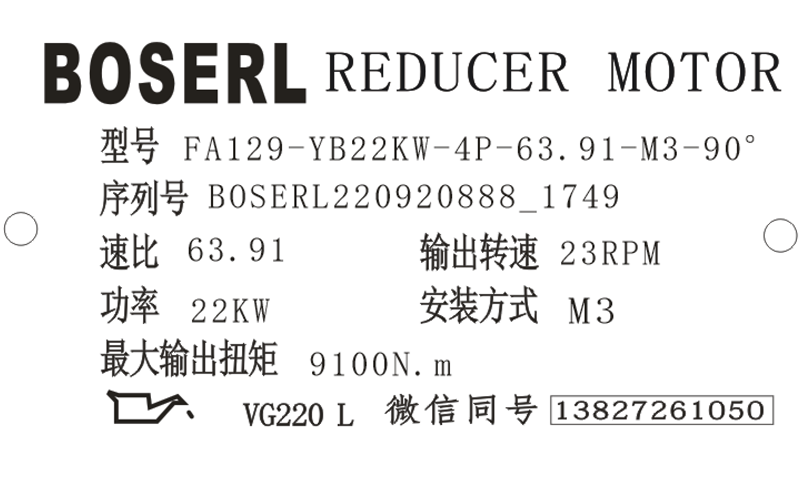

FA129減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA129減速器選型樣本。

FA129-YB22KW-4P-63.91-M3-90°

FA：系列代號

129：減速機規格代號

YB：電機

22KW：電機功率

4P：電機級數

63.91：減速機傳動比

M3：減速機安裝位置

90°：接線盒位置

FA129減速器逆止器安裝：

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA129減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

FA129減速器潤滑油檢查：

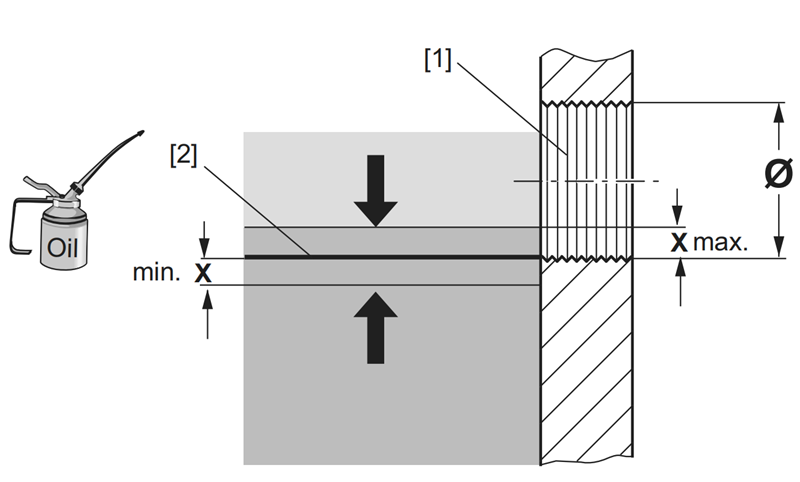

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

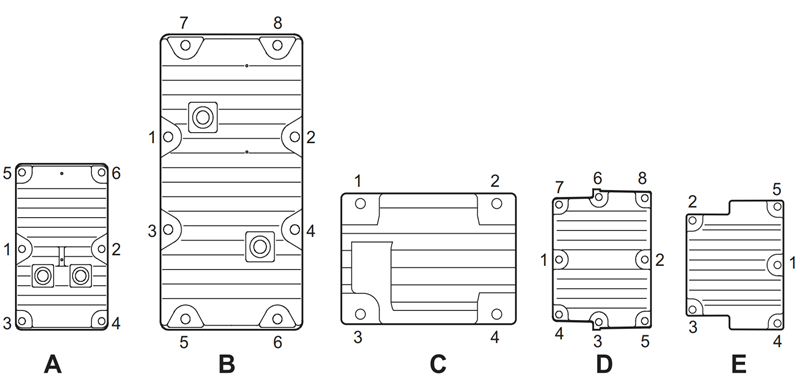

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA129減速器型號：

YQFA127-Y11KW，YQFA127-Y132M4，YQFA127-Y15KW，YQFA127-Y160M4，YQFA127-Y18.5KW，YQFA127-Y180M4，YQFA127-Y200M4，YQFA127-Y225M4，YQFA127-Y22KW，YQFA127-Y250M4，YQFA127-Y280M4，YQFA127-Y30KW，YQFA127-Y37KW，YQFA127-Y45KW，YQFA127-Y55KW，YQFA127-Y7.5KW，YQFA127-Y75KW，YQFA127-Y90KW，YQFA127-YB132M4，YQFA127-YB160M4，YQFA127-YB180M4，YQFA127-YB200M4，YQFA127-YB225M4，YQFA127-YB250M4，YQFA127-YB280M4，YQFA127-YDP132M4，YQFA127-YDP160M4，YQFA127-YDP180M4，YQFA127-YDP200M4，YQFA127-YDP225M4，YQFA127-YDP250M4，YQFA127-YDP280M4，YQFA127-YE132M4，YQFA127-YE160M4，YQFA127-YE180M4，YQFA127-YE200M4，YQFA127-YE225M4，YQFA127-YE250M4，YQFA127-YE280M4，YQFA127-YEJ132M4，YQFA127-YEJ160M4，YQFA127-YEJ180M4，YQFA127-YEJ200M4，YQFA127-YEJ225M4，YQFA127-YEJ250M4，YQFA127-YEJ280M4，YQFA127-YEJB132M4，YQFA127-YEJB160M4，YQFA127-YEJB180M4，YQFA127-YEJB200M4，YQFA127-YEJB225M4，YQFA127-YEJB250M4，YQFA127-YEJB280M4，YQFA127-YP132M4，YQFA127-YP160M4，YQFA127-YP180M4，YQFA127-YP200M4，YQFA127-YP225M4，YQFA127-YP250M4，YQFA127-YP280M4，YQFA127-YPB132M4，YQFA127-YPB160M4，YQFA127-YPB180M4，YQFA127-YPB200M4，YQFA127-YPB225M4，YQFA127-YPB250M4，YQFA127-YPB280M4，YQFA127-YPE132M4，YQFA127-YPE160M4，YQFA127-YPE180M4，YQFA127-YPE200M4，YQFA127-YPE225M4，YQFA127-YPE250M4，YQFA127-YPE280M4，YQFA127-YS132M4，YQFA127-YS160M4，YQFA127-YS180M4，YQFA127-YS200M4，YQFA127-YS225M4，YQFA127-YS250M4，YQFA127-YS280M4，YQFA127-YVB132M4，YQFA127-YVB160M4，YQFA127-YVB180M4，YQFA127-YVB200M4，YQFA127-YVB225M4，YQFA127-YVB250M4，YQFA127-YVB280M4，YQFA127-YVP132M4，YQFA127-YVP160M4，YQFA127-YVP180M4，YQFA127-YVP200M4，YQFA127-YVP225M4，YQFA127-YVP250M4，YQFA127-YVP280M4，YQFA127-YVPEJ132M4，YQFA127-YVPEJ160M4，YQFA127-YVPEJ180M4，YQFA127-YVPEJ200M4，YQFA127-YVPEJ225M4，YQFA127-YVPEJ250M4，YQFA127-YVPEJ280M4，XDFA127-Y11KW，XDFA127-Y132M4，XDFA127-Y15KW，XDFA127-Y160M4，XDFA127-Y18.5KW，XDFA127-Y180M4，XDFA127-Y200M4，XDFA127-Y225M4，XDFA127-Y22KW，XDFA127-Y250M4，XDFA127-Y280M4，XDFA127-Y30KW，XDFA127-Y37KW，XDFA127-Y45KW，XDFA127-Y55KW，XDFA127-Y7.5KW，XDFA127-Y75KW，XDFA127-Y90KW，XDFA127-YB132M4，XDFA127-YB160M4，XDFA127-YB180M4，XDFA127-YB200M4，XDFA127-YB225M4，XDFA127-YB250M4，XDFA127-YB280M4，XDFA127-YDP132M4，XDFA127-YDP160M4，XDFA127-YDP180M4，XDFA127-YDP200M4，XDFA127-YDP225M4，XDFA127-YDP250M4，XDFA127-YDP280M4，XDFA127-YE132M4，XDFA127-YE160M4，XDFA127-YE180M4，XDFA127-YE200M4，XDFA127-YE225M4，XDFA127-YE250M4，XDFA127-YE280M4，XDFA127-YEJ132M4，XDFA127-YEJ160M4，XDFA127-YEJ180M4，XDFA127-YEJ200M4，XDFA127-YEJ225M4，XDFA127-YEJ250M4，XDFA127-YEJ280M4，XDFA127-YEJB132M4，XDFA127-YEJB160M4，XDFA127-YEJB180M4，XDFA127-YEJB200M4，XDFA127-YEJB225M4，XDFA127-YEJB250M4，XDFA127-YEJB280M4，XDFA127-YP132M4，XDFA127-YP160M4，XDFA127-YP180M4，XDFA127-YP200M4，XDFA127-YP225M4，XDFA127-YP250M4，XDFA127-YP280M4，XDFA127-YPB132M4，XDFA127-YPB160M4，XDFA127-YPB180M4，XDFA127-YPB200M4，XDFA127-YPB225M4，XDFA127-YPB250M4，XDFA127-YPB280M4，XDFA127-YPE132M4，XDFA127-YPE160M4，XDFA127-YPE180M4，XDFA127-YPE200M4，XDFA127-YPE225M4，XDFA127-YPE250M4，XDFA127-YPE280M4，XDFA127-YS132M4，XDFA127-YS160M4，XDFA127-YS180M4，XDFA127-YS200M4，XDFA127-YS225M4，XDFA127-YS250M4，XDFA127-YS280M4，XDFA127-YVB132M4，XDFA127-YVB160M4，XDFA127-YVB180M4，XDFA127-YVB200M4，XDFA127-YVB225M4，XDFA127-YVB250M4，XDFA127-YVB280M4，XDFA127-YVP132M4，XDFA127-YVP160M4，XDFA127-YVP180M4，XDFA127-YVP200M4，XDFA127-YVP225M4，XDFA127-YVP250M4，XDFA127-YVP280M4，XDFA127-YVPEJ132M4，XDFA127-YVPEJ160M4，XDFA127-YVPEJ180M4，XDFA127-YVPEJ200M4，XDFA127-YVPEJ225M4，XDFA127-YVPEJ250M4，XDFA127-YVPEJ280M4，JCFA127-Y11KW，JCFA127-Y132M4，JCFA127-Y15KW，JCFA127-Y160M4，JCFA127-Y18.5KW，JCFA127-Y180M4，JCFA127-Y200M4，JCFA127-Y225M4，JCFA127-Y22KW，JCFA127-Y250M4，JCFA127-Y280M4，JCFA127-Y30KW，JCFA127-Y37KW，JCFA127-Y45KW，JCFA127-Y55KW，JCFA127-Y7.5KW，JCFA127-Y75KW，JCFA127-Y90KW，JCFA127-YB132M4，JCFA127-YB160M4，JCFA127-YB180M4，JCFA127-YB200M4，JCFA127-YB225M4，JCFA127-YB250M4，JCFA127-YB280M4，JCFA127-YDP132M4，JCFA127-YDP160M4，JCFA127-YDP180M4，JCFA127-YDP200M4，JCFA127-YDP225M4，JCFA127-YDP250M4，JCFA127-YDP280M4，JCFA127-YE132M4，JCFA127-YE160M4，JCFA127-YE180M4，JCFA127-YE200M4，JCFA127-YE225M4，JCFA127-YE250M4，JCFA127-YE280M4，JCFA127-YEJ132M4，JCFA127-YEJ160M4，JCFA127-YEJ180M4，JCFA127-YEJ200M4，JCFA127-YEJ225M4，JCFA127-YEJ250M4，JCFA127-YEJ280M4，JCFA127-YEJB132M4，JCFA127-YEJB160M4，JCFA127-YEJB180M4，JCFA127-YEJB200M4，JCFA127-YEJB225M4，JCFA127-YEJB250M4，JCFA127-YEJB280M4，JCFA127-YP132M4，JCFA127-YP160M4，JCFA127-YP180M4，JCFA127-YP200M4，JCFA127-YP225M4，JCFA127-YP250M4，JCFA127-YP280M4，JCFA127-YPB132M4，JCFA127-YPB160M4，JCFA127-YPB180M4，JCFA127-YPB200M4，JCFA127-YPB225M4，JCFA127-YPB250M4，JCFA127-YPB280M4，JCFA127-YPE132M4，JCFA127-YPE160M4，JCFA127-YPE180M4，JCFA127-YPE200M4，JCFA127-YPE225M4，JCFA127-YPE250M4，JCFA127-YPE280M4，JCFA127-YS132M4，JCFA127-YS160M4，JCFA127-YS180M4，JCFA127-YS200M4，JCFA127-YS225M4，JCFA127-YS250M4，JCFA127-YS280M4，JCFA127-YVB132M4，JCFA127-YVB160M4，JCFA127-YVB180M4，JCFA127-YVB200M4，JCFA127-YVB225M4，JCFA127-YVB250M4，JCFA127-YVB280M4，JCFA127-YVP132M4，JCFA127-YVP160M4，JCFA127-YVP180M4，JCFA127-YVP200M4，JCFA127-YVP225M4，JCFA127-YVP250M4，JCFA127-YVP280M4，JCFA127-YVPEJ132M4，JCFA127-YVPEJ160M4，JCFA127-YVPEJ180M4，JCFA127-YVPEJ200M4，JCFA127-YVPEJ225M4，JCFA127-YVPEJ250M4，JCFA127-YVPEJ280M4，FWA127-Y11KW，FWA127-Y132M4，FWA127-Y15KW，FWA127-Y160M4，FWA127-Y18.5KW，FWA127-Y180M4，FWA127-Y200M4，FWA127-Y225M4，FWA127-Y22KW，FWA127-Y250M4，FWA127-Y280M4，FWA127-Y30KW，FWA127-Y37KW，FWA127-Y45KW，FWA127-Y55KW，FWA127-Y7.5KW，FWA127-Y75KW，FWA127-Y90KW，FWA127-YB132M4，FWA127-YB160M4，FWA127-YB180M4，FWA127-YB200M4，FWA127-YB225M4，FWA127-YB250M4，FWA127-YB280M4，FWA127-YDP132M4，FWA127-YDP160M4，FWA127-YDP180M4，FWA127-YDP200M4，FWA127-YDP225M4，FWA127-YDP250M4，FWA127-YDP280M4，FWA127-YE132M4，FWA127-YE160M4，FWA127-YE180M4，FWA127-YE200M4，FWA127-YE225M4，FWA127-YE250M4，FWA127-YE280M4，FWA127-YEJ132M4，FWA127-YEJ160M4，FWA127-YEJ180M4，FWA127-YEJ200M4，FWA127-YEJ225M4，FWA127-YEJ250M4，FWA127-YEJ280M4，FWA127-YEJB132M4，FWA127-YEJB160M4，FWA127-YEJB180M4，FWA127-YEJB200M4，FWA127-YEJB225M4，FWA127-YEJB250M4，FWA127-YEJB280M4，FWA127-YP132M4，FWA127-YP160M4，FWA127-YP180M4，FWA127-YP200M4，FWA127-YP225M4，FWA127-YP250M4，FWA127-YP280M4，FWA127-YPB132M4，FWA127-YPB160M4，FWA127-YPB180M4，FWA127-YPB200M4，FWA127-YPB225M4，FWA127-YPB250M4，FWA127-YPB280M4，FWA127-YPE132M4，FWA127-YPE160M4，FWA127-YPE180M4，FWA127-YPE200M4，FWA127-YPE225M4，FWA127-YPE250M4，FWA127-YPE280M4，FWA127-YS132M4，FWA127-YS160M4，FWA127-YS180M4，FWA127-YS200M4，FWA127-YS225M4，FWA127-YS250M4，FWA127-YS280M4，FWA127-YVB132M4，FWA127-YVB160M4，FWA127-YVB180M4，FWA127-YVB200M4，FWA127-YVB225M4，FWA127-YVB250M4，FWA127-YVB280M4，FWA127-YVP132M4，FWA127-YVP160M4，FWA127-YVP180M4，FWA127-YVP200M4，FWA127-YVP225M4，FWA127-YVP250M4，FWA127-YVP280M4，FWA127-YVPEJ132M4，FWA127-YVPEJ160M4，FWA127-YVPEJ180M4，FWA127-YVPEJ200M4，FWA127-YVPEJ225M4，FWA127-YVPEJ250M4，FWA127-YVPEJ280M4，FA129-Y11KW，FA129-Y132M4，FA129-Y15KW，FA129-Y160M4，FA129-Y18.5KW，FA129-Y180M4，FA129-Y200M4，FA129-Y225M4，FA129-Y22KW，FA129-Y250M4，FA129-Y280M4，FA129-Y30KW，FA129-Y37KW，FA129-Y45KW，FA129-Y55KW，FA129-Y7.5KW，FA129-Y75KW，FA129-Y90KW，FA129-YB132M4，FA129-YB160M4，FA129-YB180M4，FA129-YB200M4，FA129-YB225M4，FA129-YB250M4，FA129-YB280M4，FA129-YDP132M4，FA129-YDP160M4，FA129-YDP180M4，FA129-YDP200M4，FA129-YDP225M4，FA129-YDP250M4，FA129-YDP280M4，FA129-YE132M4，FA129-YE160M4，FA129-YE180M4，FA129-YE200M4，FA129-YE225M4，FA129-YE250M4，FA129-YE280M4，FA129-YEJ132M4，FA129-YEJ160M4，FA129-YEJ180M4，FA129-YEJ200M4，FA129-YEJ225M4，FA129-YEJ250M4，FA129-YEJ280M4，FA129-YEJB132M4，FA129-YEJB160M4，FA129-YEJB180M4，FA129-YEJB200M4，FA129-YEJB225M4，FA129-YEJB250M4，FA129-YEJB280M4，FA129-YP132M4，FA129-YP160M4，FA129-YP180M4，FA129-YP200M4，FA129-YP225M4，FA129-YP250M4，FA129-YP280M4，FA129-YPB132M4，FA129-YPB160M4，FA129-YPB180M4，FA129-YPB200M4，FA129-YPB225M4，FA129-YPB250M4，FA129-YPB280M4，FA129-YPE132M4，FA129-YPE160M4，FA129-YPE180M4，FA129-YPE200M4，FA129-YPE225M4，FA129-YPE250M4，FA129-YPE280M4，FA129-YS132M4，FA129-YS160M4，FA129-YS180M4，FA129-YS200M4，FA129-YS225M4，FA129-YS250M4，FA129-YS280M4，FA129-YVB132M4，FA129-YVB160M4，FA129-YVB180M4，FA129-YVB200M4，FA129-YVB225M4，FA129-YVB250M4，FA129-YVB280M4，FA129-YVP132M4，FA129-YVP160M4，FA129-YVP180M4，FA129-YVP200M4，FA129-YVP225M4，FA129-YVP250M4，FA129-YVP280M4，FA129-YVPEJ132M4，FA129-YVPEJ160M4，FA129-YVPEJ180M4，FA129-YVPEJ200M4，FA129-YVPEJ225M4，FA129-YVPEJ250M4，FA129-YVPEJ280M4，FA127SF80，FA127SF90，FA127SF100，FA127SF112，FA127SF115，FA127SF140，FA127SF160，FA127SF190。

FA129減速器生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.hsm-hk.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F129減速機
