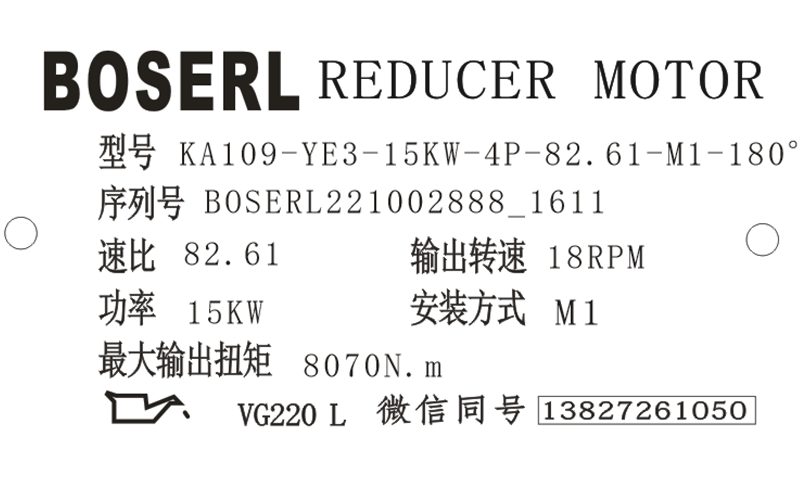

KA109減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA109減速機選型樣本。

KA109-YE3-15KW-4P-82.61-M1-180°

KA：系列代號

109：減速機規格代號

YE3：電機

15KW：電機功率

4P：電機級數

82.61：減速機傳動比

M1：減速機安裝位置

180°：接線盒位置

KA109減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA109減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA109減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA109減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA109減速機型號：

WKA107-Y100M4，WKA107-Y112M4，WKA107-Y11SKA，WKA107-Y132M4，WKA107-Y15SKA，WKA107-Y160M4，WKA107-Y18.5SKA，WKA107-Y180M4，WKA107-Y200M4，WKA107-Y225M4，WKA107-Y22SKA，WKA107-Y30SKA，WKA107-Y37SKA，WKA107-Y3SKA，WKA107-Y45SKA，WKA107-Y4SKA，WKA107-Y5.5SKA，WKA107-Y7.5SKA，WKA107-YB100M4，WKA107-YB112M4，WKA107-YB132M4，WKA107-YB160M4，WKA107-YB180M4，WKA107-YB200M4，WKA107-YB225M4，WKA107-YDP100M4，WKA107-YDP112M4，WKA107-YDP132M4，WKA107-YDP160M4，WKA107-YDP180M4，WKA107-YDP200M4，WKA107-YDP225M4，WKA107-YE100M4，WKA107-YE112M4，WKA107-YE132M4，WKA107-YE160M4，WKA107-YE180M4，WKA107-YE200M4，WKA107-YE225M4，WKA107-YEJ100M4，WKA107-YEJ112M4，WKA107-YEJ132M4，WKA107-YEJ160M4，WKA107-YEJ180M4，WKA107-YEJ200M4，WKA107-YEJ225M4，WKA107-YEJB100M4，WKA107-YEJB112M4，WKA107-YEJB132M4，WKA107-YEJB160M4，WKA107-YEJB180M4，WKA107-YEJB200M4，WKA107-YEJB225M4，WKA107-YP100M4，WKA107-YP112M4，WKA107-YP132M4，WKA107-YP160M4，WKA107-YP180M4，WKA107-YP200M4，WKA107-YP225M4，WKA107-YPB100M4，WKA107-YPB112M4，WKA107-YPB132M4，WKA107-YPB160M4，WKA107-YPB180M4，WKA107-YPB200M4，WKA107-YPB225M4，WKA107-YPE100M4，WKA107-YPE112M4，WKA107-YPE132M4，WKA107-YPE160M4，WKA107-YPE180M4，WKA107-YPE200M4，WKA107-YPE225M4，WKA107-YS100M4，WKA107-YS112M4，WKA107-YS132M4，WKA107-YS160M4，WKA107-YS180M4，WKA107-YS200M4，WKA107-YS225M4，WKA107-YVB100M4，WKA107-YVB112M4，WKA107-YVB132M4，WKA107-YVB160M4，WKA107-YVB180M4，WKA107-YVB200M4，WKA107-YVB225M4，WKA107-YVP100M4，WKA107-YVP112M4，WKA107-YVP132M4，WKA107-YVP160M4，WKA107-YVP180M4，WKA107-YVP200M4，WKA107-YVP225M4，WKA107-YVPEJ100M4，WKA107-YVPEJ112M4，WKA107-YVPEJ132M4，WKA107-YVPEJ160M4，WKA107-YVPEJ180M4，WKA107-YVPEJ200M4，WKA107-YVPEJ225M4，AKA107-Y100M4，AKA107-Y112M4，AKA107-Y11SKA，AKA107-Y132M4，AKA107-Y15SKA，AKA107-Y160M4，AKA107-Y18.5SKA，AKA107-Y180M4，AKA107-Y200M4，AKA107-Y225M4，AKA107-Y22SKA，AKA107-Y30SKA，AKA107-Y37SKA，AKA107-Y3SKA，AKA107-Y45SKA，AKA107-Y4SKA，AKA107-Y5.5SKA，AKA107-Y7.5SKA，AKA107-YB100M4，AKA107-YB112M4，AKA107-YB132M4，AKA107-YB160M4，AKA107-YB180M4，AKA107-YB200M4，AKA107-YB225M4，AKA107-YDP100M4，AKA107-YDP112M4，AKA107-YDP132M4，AKA107-YDP160M4，AKA107-YDP180M4，AKA107-YDP200M4，AKA107-YDP225M4，AKA107-YE100M4，AKA107-YE112M4，AKA107-YE132M4，AKA107-YE160M4，AKA107-YE180M4，AKA107-YE200M4，AKA107-YE225M4，AKA107-YEJ100M4，AKA107-YEJ112M4，AKA107-YEJ132M4，AKA107-YEJ160M4，AKA107-YEJ180M4，AKA107-YEJ200M4，AKA107-YEJ225M4，AKA107-YEJB100M4，AKA107-YEJB112M4，AKA107-YEJB132M4，AKA107-YEJB160M4，AKA107-YEJB180M4，AKA107-YEJB200M4，AKA107-YEJB225M4，AKA107-YP100M4，AKA107-YP112M4，AKA107-YP132M4，AKA107-YP160M4，AKA107-YP180M4，AKA107-YP200M4，AKA107-YP225M4，AKA107-YPB100M4，AKA107-YPB112M4，AKA107-YPB132M4，AKA107-YPB160M4，AKA107-YPB180M4，AKA107-YPB200M4，AKA107-YPB225M4，AKA107-YPE100M4，AKA107-YPE112M4，AKA107-YPE132M4，AKA107-YPE160M4，AKA107-YPE180M4，AKA107-YPE200M4，AKA107-YPE225M4，AKA107-YS100M4，AKA107-YS112M4，AKA107-YS132M4，AKA107-YS160M4，AKA107-YS180M4，AKA107-YS200M4，AKA107-YS225M4，AKA107-YVB100M4，AKA107-YVB112M4，AKA107-YVB132M4，AKA107-YVB160M4，AKA107-YVB180M4，AKA107-YVB200M4，AKA107-YVB225M4，AKA107-YVP100M4，AKA107-YVP112M4，AKA107-YVP132M4，AKA107-YVP160M4，AKA107-YVP180M4，AKA107-YVP200M4，AKA107-YVP225M4，AKA107-YVPEJ100M4，AKA107-YVPEJ112M4，AKA107-YVPEJ132M4，AKA107-YVPEJ160M4，AKA107-YVPEJ180M4，AKA107-YVPEJ200M4，AKA107-YVPEJ225M4，NKA107-Y100M4，NKA107-Y112M4，NKA107-Y11SKA，NKA107-Y132M4，NKA107-Y15SKA，NKA107-Y160M4，NKA107-Y18.5SKA，NKA107-Y180M4，NKA107-Y200M4，NKA107-Y225M4，NKA107-Y22SKA，NKA107-Y30SKA，NKA107-Y37SKA，NKA107-Y3SKA，NKA107-Y45SKA，NKA107-Y4SKA，NKA107-Y5.5SKA，NKA107-Y7.5SKA，NKA107-YB100M4，NKA107-YB112M4，NKA107-YB132M4，NKA107-YB160M4，NKA107-YB180M4，NKA107-YB200M4，NKA107-YB225M4，NKA107-YDP100M4，NKA107-YDP112M4，NKA107-YDP132M4，NKA107-YDP160M4，NKA107-YDP180M4，NKA107-YDP200M4，NKA107-YDP225M4，NKA107-YE100M4，NKA107-YE112M4，NKA107-YE132M4，NKA107-YE160M4，NKA107-YE180M4，NKA107-YE200M4，NKA107-YE225M4，NKA107-YEJ100M4，NKA107-YEJ112M4，NKA107-YEJ132M4，NKA107-YEJ160M4，NKA107-YEJ180M4，NKA107-YEJ200M4，NKA107-YEJ225M4，NKA107-YEJB100M4，NKA107-YEJB112M4，NKA107-YEJB132M4，NKA107-YEJB160M4，NKA107-YEJB180M4，NKA107-YEJB200M4，NKA107-YEJB225M4，NKA107-YP100M4，NKA107-YP112M4，NKA107-YP132M4，NKA107-YP160M4，NKA107-YP180M4，NKA107-YP200M4，NKA107-YP225M4，NKA107-YPB100M4，NKA107-YPB112M4，NKA107-YPB132M4，NKA107-YPB160M4，NKA107-YPB180M4，NKA107-YPB200M4，NKA107-YPB225M4，NKA107-YPE100M4，NKA107-YPE112M4，NKA107-YPE132M4，NKA107-YPE160M4，NKA107-YPE180M4，NKA107-YPE200M4，NKA107-YPE225M4，NKA107-YS100M4，NKA107-YS112M4，NKA107-YS132M4，NKA107-YS160M4，NKA107-YS180M4，NKA107-YS200M4，NKA107-YS225M4，NKA107-YVB100M4，NKA107-YVB112M4，NKA107-YVB132M4，NKA107-YVB160M4，NKA107-YVB180M4，NKA107-YVB200M4，NKA107-YVB225M4，NKA107-YVP100M4，NKA107-YVP112M4，NKA107-YVP132M4，NKA107-YVP160M4，NKA107-YVP180M4，NKA107-YVP200M4，NKA107-YVP225M4，NKA107-YVPEJ100M4，NKA107-YVPEJ112M4，NKA107-YVPEJ132M4，NKA107-YVPEJ160M4，NKA107-YVPEJ180M4，NKA107-YVPEJ200M4，NKA107-YVPEJ225M4，SKA107-Y100M4，SKA107-Y112M4，SKA107-Y11SKA，SKA107-Y132M4，SKA107-Y15SKA，SKA107-Y160M4，SKA107-Y18.5SKA，SKA107-Y180M4，SKA107-Y200M4，SKA107-Y225M4，SKA107-Y22SKA，SKA107-Y30SKA，SKA107-Y37SKA，SKA107-Y3SKA，SKA107-Y45SKA，SKA107-Y4SKA，SKA107-Y5.5SKA，SKA107-Y7.5SKA，SKA107-YB100M4，SKA107-YB112M4，SKA107-YB132M4，SKA107-YB160M4，SKA107-YB180M4，SKA107-YB200M4，SKA107-YB225M4，SKA107-YDP100M4，SKA107-YDP112M4，SKA107-YDP132M4，SKA107-YDP160M4，SKA107-YDP180M4，SKA107-YDP200M4，SKA107-YDP225M4，SKA107-YE100M4，SKA107-YE112M4，SKA107-YE132M4，SKA107-YE160M4，SKA107-YE180M4，SKA107-YE200M4，SKA107-YE225M4，SKA107-YEJ100M4，SKA107-YEJ112M4，SKA107-YEJ132M4，SKA107-YEJ160M4，SKA107-YEJ180M4，SKA107-YEJ200M4，SKA107-YEJ225M4，SKA107-YEJB100M4，SKA107-YEJB112M4，SKA107-YEJB132M4，SKA107-YEJB160M4，SKA107-YEJB180M4，SKA107-YEJB200M4，SKA107-YEJB225M4，SKA107-YP100M4，SKA107-YP112M4，SKA107-YP132M4，SKA107-YP160M4，SKA107-YP180M4，SKA107-YP200M4，SKA107-YP225M4，SKA107-YPB100M4，SKA107-YPB112M4，SKA107-YPB132M4，SKA107-YPB160M4，SKA107-YPB180M4，SKA107-YPB200M4，SKA107-YPB225M4，SKA107-YPE100M4，SKA107-YPE112M4，SKA107-YPE132M4，SKA107-YPE160M4，SKA107-YPE180M4，SKA107-YPE200M4，SKA107-YPE225M4，SKA107-YS100M4，SKA107-YS112M4，SKA107-YS132M4，SKA107-YS160M4，SKA107-YS180M4，SKA107-YS200M4，SKA107-YS225M4，SKA107-YVB100M4，SKA107-YVB112M4，SKA107-YVB132M4，SKA107-YVB160M4，SKA107-YVB180M4，SKA107-YVB200M4，SKA107-YVB225M4，SKA107-YVP100M4，SKA107-YVP112M4，SKA107-YVP132M4，SKA107-YVP160M4，SKA107-YVP180M4，SKA107-YVP200M4，SKA107-YVP225M4，SKA107-YVPEJ100M4，SKA107-YVPEJ112M4，SKA107-YVPEJ132M4，SKA107-YVPEJ160M4，SKA107-YVPEJ180M4，SKA107-YVPEJ200M4，SKA107-YVPEJ225M4，GKA109-Y100M4，GKA109-Y112M4，GKA109-Y11SKA，GKA109-Y132M4，GKA109-Y15SKA，GKA109-Y160M4，GKA109-Y18.5SKA，GKA109-Y180M4，GKA109-Y200M4，GKA109-Y225M4，GKA109-Y22SKA，GKA109-Y30SKA，GKA109-Y37SKA，GKA109-Y3SKA，GKA109-Y45SKA，GKA109-Y4SKA，GKA109-Y5.5SKA，GKA109-Y7.5SKA，GKA109-YB100M4，GKA109-YB112M4，GKA109-YB132M4，GKA109-YB160M4，GKA109-YB180M4，GKA109-YB200M4，GKA109-YB225M4，GKA109-YDP100M4，GKA109-YDP112M4，GKA109-YDP132M4，GKA109-YDP160M4，GKA109-YDP180M4，GKA109-YDP200M4，GKA109-YDP225M4，GKA109-YE100M4，GKA109-YE112M4，GKA109-YE132M4，GKA109-YE160M4，GKA109-YE180M4，GKA109-YE200M4，GKA109-YE225M4，GKA109-YEJ100M4，GKA109-YEJ112M4，GKA109-YEJ132M4，GKA109-YEJ160M4，GKA109-YEJ180M4，GKA109-YEJ200M4，GKA109-YEJ225M4，GKA109-YEJB100M4，GKA109-YEJB112M4，GKA109-YEJB132M4，GKA109-YEJB160M4，GKA109-YEJB180M4，GKA109-YEJB200M4，GKA109-YEJB225M4，GKA109-YP100M4，GKA109-YP112M4，GKA109-YP132M4，GKA109-YP160M4，GKA109-YP180M4，GKA109-YP200M4，GKA109-YP225M4，GKA109-YPB100M4，GKA109-YPB112M4，GKA109-YPB132M4，GKA109-YPB160M4，GKA109-YPB180M4，GKA109-YPB200M4，GKA109-YPB225M4，GKA109-YPE100M4，GKA109-YPE112M4，GKA109-YPE132M4，GKA109-YPE160M4，GKA109-YPE180M4，GKA109-YPE200M4，GKA109-YPE225M4，GKA109-YS100M4，GKA109-YS112M4，GKA109-YS132M4，GKA109-YS160M4，GKA109-YS180M4，GKA109-YS200M4，GKA109-YS225M4，GKA109-YVB100M4，GKA109-YVB112M4，GKA109-YVB132M4，GKA109-YVB160M4，GKA109-YVB180M4，GKA109-YVB200M4，GKA109-YVB225M4，GKA109-YVP100M4，GKA109-YVP112M4，GKA109-YVP132M4，GKA109-YVP160M4，GKA109-YVP180M4，GKA109-YVP200M4，GKA109-YVP225M4，GKA109-YVPEJ100M4，GKA109-YVPEJ112M4，GKA109-YVPEJ132M4，GKA109-YVPEJ160M4，GKA109-YVPEJ180M4，GKA109-YVPEJ200M4，GKA109-YVPEJ225M4。

KA109減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.hsm-hk.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K109減速機
