FA89R59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA89R59減速機選型樣本。

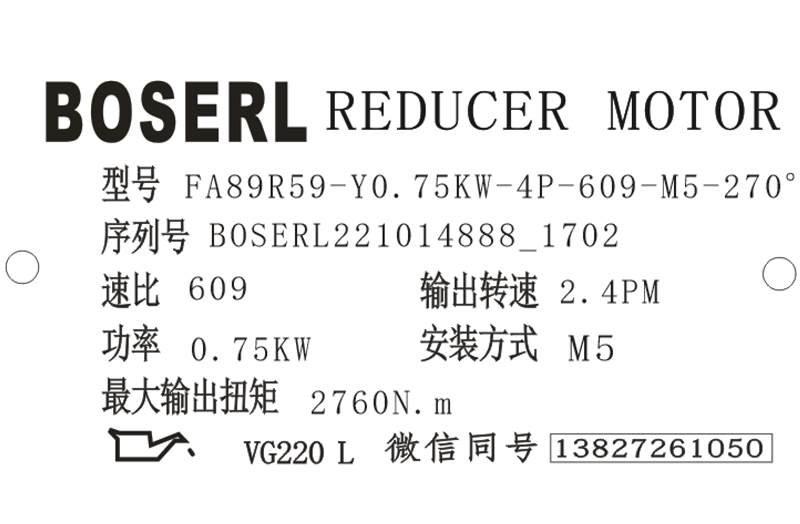

FA89R59-Y0.75KW-4P-609-M5-270°

FA/R：系列代號

89/59：減速機規格代號

Y：電機

0.75KW：電機功率

4P：電機級數

609：減速機傳動比

M5：減速機安裝位置

270°：接線盒位置

FA89R59減速機電機使用環境要求：

環境溫度-5~40C；環境濕度85%；海拔高度1000m以下。齒輪減速電機

請勿在爆炸環境、易燃性氣體環境、腐蝕性環境以及漏水的環境下使用此減速電機；

請勿強行彎曲、拉扯或夾住電源、電纜線和電機導線；

電機安裝完成后，必須使用接地線良好接地，接地線位置位于接線盒上面；

安裝、連接、檢查等須由專業技術人員進行；

安裝環境需干燥且通風良好，周圍溫度-5~40℃之間若需高溫或低溫環境下運行，請特別說明；

齒輪減速電機需安裝在平整且堅固的機座上。

備注：大部分電機在50Hz交流電下的聲壓級都不超過70dB(A)。平行軸斜齒輪減速機

FA89R59減速機電機使用使用前事項：

收貨后：請立即檢查有無運輸損壞。如有損壞請立即通知運輸公司。必要情況下不得對設備進行調試運行；請檢查產品型號、電機功率、電機額定電壓、安裝方式及出力軸尺寸是否符合要求，如有不符請及時與廠家或經銷商聯系，以便及時處理。

請根據接線盒內的接線圖或者使用說明書與電源電纜進行連接。否則有可能會導致觸電和火災。

請勿過分彎曲、牽拉、夾持電源電纜以及電機導線。否則有可能會導致觸電。請將接地用端子切實接地。否則有可能會導致觸電。

請務必使用銘牌上記載的電源。否則有可能會損壞電機、引發火災。分體減速機電機

FA89R59減速電機型號：

YQFA87R57-Y0.12KW，YQFA87R57-Y0.18KW，YQFA87R57-Y0.25KW，YQFA87R57-Y0.37KW，YQFA87R57-Y0.55KW，YQFA87R57-Y0.75KW，YQFA87R57-Y1.1KW，YQFA87R57-Y1.5KW，YQFA87R57-Y63M4，YQFA87R57-Y71M4，YQFA87R57-Y80M4，YQFA87R57-Y90M4，YQFA87RF57-Y63M4，YQFA87RF57-Y71M4，YQFA87RF57-Y80M4，YQFA87RF57-Y90M4，YQFA87RF57-YB63M4，YQFA87RF57-YB71M4，YQFA87RF57-YB80M4，YQFA87RF57-YB90S4，YQFA87RF57-YDP63M4，YQFA87RF57-YDP71M4，YQFA87RF57-YDP80M4，YQFA87RF57-YDP90S4，YQFA87RF57-YE63M4，YQFA87RF57-YE71M4，YQFA87RF57-YE80M4，YQFA87RF57-YE90S4，YQFA87RF57-YEJ63M4，YQFA87RF57-YEJ71M4，YQFA87RF57-YEJ80M4，YQFA87RF57-YEJ90S4，YQFA87RF57-YEJB63M4，YQFA87RF57-YEJB71M4，YQFA87RF57-YEJB80M4，YQFA87RF57-YEJB90S4，YQFA87RF57-YP63M4，YQFA87RF57-YP71M4，YQFA87RF57-YP80M4，YQFA87RF57-YP90S4，YQFA87RF57-YPB63M4，YQFA87RF57-YPB71M4，YQFA87RF57-YPB80M4，YQFA87RF57-YPB90S4，YQFA87RF57-YPE63M4，YQFA87RF57-YPE71M4，YQFA87RF57-YPE80M4，YQFA87RF57-YPE90S4，YQFA87RF57-YS63M4，YQFA87RF57-YS71M4，YQFA87RF57-YS80M4，YQFA87RF57-YS90S4，YQFA87RF57-YVB63M4，YQFA87RF57-YVB71M4，YQFA87RF57-YVB80M4，YQFA87RF57-YVB90S4，YQFA87RF57-YVP63M4，YQFA87RF57-YVP71M4，YQFA87RF57-YVP80M4，YQFA87RF57-YVP90S4，YQFA87RF57-YVPEJ63M4，YQFA87RF57-YVPEJ71M4，YQFA87RF57-YVPEJ80M4，YQFA87RF57-YVPEJ90S4，JCFA87R57-Y0.12KW，JCFA87R57-Y0.18KW，JCFA87R57-Y0.25KW，JCFA87R57-Y0.37KW，JCFA87R57-Y0.55KW，JCFA87R57-Y0.75KW，JCFA87R57-Y1.1KW，JCFA87R57-Y1.5KW，JCFA87R57-Y63M4，JCFA87R57-Y71M4，JCFA87R57-Y80M4，JCFA87R57-Y90M4，JCFA87RF57-Y63M4，JCFA87RF57-Y71M4，JCFA87RF57-Y80M4，JCFA87RF57-Y90M4，JCFA87RF57-YB63M4，JCFA87RF57-YB71M4，JCFA87RF57-YB80M4，JCFA87RF57-YB90S4，JCFA87RF57-YDP63M4，JCFA87RF57-YDP71M4，JCFA87RF57-YDP80M4，JCFA87RF57-YDP90S4，JCFA87RF57-YE63M4，JCFA87RF57-YE71M4，JCFA87RF57-YE80M4，JCFA87RF57-YE90S4，JCFA87RF57-YEJ63M4，JCFA87RF57-YEJ71M4，JCFA87RF57-YEJ80M4，JCFA87RF57-YEJ90S4，JCFA87RF57-YEJB63M4，JCFA87RF57-YEJB71M4，JCFA87RF57-YEJB80M4，JCFA87RF57-YEJB90S4，JCFA87RF57-YP63M4，JCFA87RF57-YP71M4，JCFA87RF57-YP80M4，JCFA87RF57-YP90S4，JCFA87RF57-YPB63M4，JCFA87RF57-YPB71M4，JCFA87RF57-YPB80M4，JCFA87RF57-YPB90S4，JCFA87RF57-YPE63M4，JCFA87RF57-YPE71M4，JCFA87RF57-YPE80M4，JCFA87RF57-YPE90S4，JCFA87RF57-YS63M4，JCFA87RF57-YS71M4，JCFA87RF57-YS80M4，JCFA87RF57-YS90S4，JCFA87RF57-YVB63M4，JCFA87RF57-YVB71M4，JCFA87RF57-YVB80M4，JCFA87RF57-YVB90S4，JCFA87RF57-YVP63M4，JCFA87RF57-YVP71M4，JCFA87RF57-YVP80M4，JCFA87RF57-YVP90S4，JCFA87RF57-YVPEJ63M4，JCFA87RF57-YVPEJ71M4，JCFA87RF57-YVPEJ80M4，JCFA87RF57-YVPEJ90S4，AFA87R57-Y0.12KW，AFA87R57-Y0.18KW，AFA87R57-Y0.25KW，AFA87R57-Y0.37KW，AFA87R57-Y0.55KW，AFA87R57-Y0.75KW，AFA87R57-Y1.1KW，AFA87R57-Y1.5KW，AFA87R57-Y63M4，AFA87R57-Y71M4，AFA87R57-Y80M4，AFA87R57-Y90M4，AFA87RF57-Y63M4，AFA87RF57-Y71M4，AFA87RF57-Y80M4，AFA87RF57-Y90M4，AFA87RF57-YB63M4，AFA87RF57-YB71M4，AFA87RF57-YB80M4，AFA87RF57-YB90S4，AFA87RF57-YDP63M4，AFA87RF57-YDP71M4，AFA87RF57-YDP80M4，AFA87RF57-YDP90S4，AFA87RF57-YE63M4，AFA87RF57-YE71M4，AFA87RF57-YE80M4，AFA87RF57-YE90S4，AFA87RF57-YEJ63M4，AFA87RF57-YEJ71M4，AFA87RF57-YEJ80M4，AFA87RF57-YEJ90S4，AFA87RF57-YEJB63M4，AFA87RF57-YEJB71M4，AFA87RF57-YEJB80M4，AFA87RF57-YEJB90S4，AFA87RF57-YP63M4，AFA87RF57-YP71M4，AFA87RF57-YP80M4，AFA87RF57-YP90S4，AFA87RF57-YPB63M4，AFA87RF57-YPB71M4，AFA87RF57-YPB80M4，AFA87RF57-YPB90S4，AFA87RF57-YPE63M4，AFA87RF57-YPE71M4，AFA87RF57-YPE80M4，AFA87RF57-YPE90S4，AFA87RF57-YS63M4，AFA87RF57-YS71M4，AFA87RF57-YS80M4，AFA87RF57-YS90S4，AFA87RF57-YVB63M4，AFA87RF57-YVB71M4，AFA87RF57-YVB80M4，AFA87RF57-YVB90S4，AFA87RF57-YVP63M4，AFA87RF57-YVP71M4，AFA87RF57-YVP80M4，AFA87RF57-YVP90S4，AFA87RF57-YVPEJ63M4，AFA87RF57-YVPEJ71M4，AFA87RF57-YVPEJ80M4，AFA87RF57-YVPEJ90S4，WFA87R57-Y0.12KW，WFA87R57-Y0.18KW，WFA87R57-Y0.25KW，WFA87R57-Y0.37KW，WFA87R57-Y0.55KW，WFA87R57-Y0.75KW，WFA87R57-Y1.1KW，WFA87R57-Y1.5KW，WFA87R57-Y63M4，WFA87R57-Y71M4，WFA87R57-Y80M4，WFA87R57-Y90M4，WFA87RF57-Y63M4，WFA87RF57-Y71M4，WFA87RF57-Y80M4，WFA87RF57-Y90M4，WFA87RF57-YB63M4，WFA87RF57-YB71M4，WFA87RF57-YB80M4，WFA87RF57-YB90S4，WFA87RF57-YDP63M4，WFA87RF57-YDP71M4，WFA87RF57-YDP80M4，WFA87RF57-YDP90S4，WFA87RF57-YE63M4，WFA87RF57-YE71M4，WFA87RF57-YE80M4，WFA87RF57-YE90S4，WFA87RF57-YEJ63M4，WFA87RF57-YEJ71M4，WFA87RF57-YEJ80M4，WFA87RF57-YEJ90S4，WFA87RF57-YEJB63M4，WFA87RF57-YEJB71M4，WFA87RF57-YEJB80M4，WFA87RF57-YEJB90S4，WFA87RF57-YP63M4，WFA87RF57-YP71M4，WFA87RF57-YP80M4，WFA87RF57-YP90S4，WFA87RF57-YPB63M4，WFA87RF57-YPB71M4，WFA87RF57-YPB80M4，WFA87RF57-YPB90S4，WFA87RF57-YPE63M4，WFA87RF57-YPE71M4，WFA87RF57-YPE80M4，WFA87RF57-YPE90S4，WFA87RF57-YS63M4，WFA87RF57-YS71M4，WFA87RF57-YS80M4，WFA87RF57-YS90S4，WFA87RF57-YVB63M4，WFA87RF57-YVB71M4，WFA87RF57-YVB80M4，WFA87RF57-YVB90S4，WFA87RF57-YVP63M4，WFA87RF57-YVP71M4，WFA87RF57-YVP80M4，WFA87RF57-YVP90S4，WFA87RF57-YVPEJ63M4，WFA87RF57-YVPEJ71M4，WFA87RF57-YVPEJ80M4，WFA87RF57-YVPEJ90S4，NFA87R57-Y0.12KW，NFA87R57-Y0.18KW，NFA87R57-Y0.25KW，NFA87R57-Y0.37KW，NFA87R57-Y0.55KW，NFA87R57-Y0.75KW，NFA87R57-Y1.1KW，NFA87R57-Y1.5KW，NFA87R57-Y63M4，NFA87R57-Y71M4，NFA87R57-Y80M4，NFA87R57-Y90M4，NFA87RF57-Y63M4，NFA87RF57-Y71M4，NFA87RF57-Y80M4，NFA87RF57-Y90M4，NFA87RF57-YB63M4，NFA87RF57-YB71M4，NFA87RF57-YB80M4，NFA87RF57-YB90S4，NFA87RF57-YDP63M4，NFA87RF57-YDP71M4，NFA87RF57-YDP80M4，NFA87RF57-YDP90S4，NFA87RF57-YE63M4，NFA87RF57-YE71M4，NFA87RF57-YE80M4，NFA87RF57-YE90S4，NFA87RF57-YEJ63M4，NFA87RF57-YEJ71M4，NFA87RF57-YEJ80M4，NFA87RF57-YEJ90S4，NFA87RF57-YEJB63M4，NFA87RF57-YEJB71M4，NFA87RF57-YEJB80M4，NFA87RF57-YEJB90S4，NFA87RF57-YP63M4，NFA87RF57-YP71M4，NFA87RF57-YP80M4，NFA87RF57-YP90S4，NFA87RF57-YPB63M4，NFA87RF57-YPB71M4，NFA87RF57-YPB80M4，NFA87RF57-YPB90S4，NFA87RF57-YPE63M4，NFA87RF57-YPE71M4，NFA87RF57-YPE80M4，NFA87RF57-YPE90S4，NFA87RF57-YS63M4，NFA87RF57-YS71M4，NFA87RF57-YS80M4，NFA87RF57-YS90S4，NFA87RF57-YVB63M4，NFA87RF57-YVB71M4，NFA87RF57-YVB80M4，NFA87RF57-YVB90S4，NFA87RF57-YVP63M4，NFA87RF57-YVP71M4，NFA87RF57-YVP80M4，NFA87RF57-YVP90S4，NFA87RF57-YVPEJ63M4，NFA87RF57-YVPEJ71M4，NFA87RF57-YVPEJ80M4，NFA87RF57-YVPEJ90S4，SFA87R57-Y0.12KW，SFA87R57-Y0.18KW，SFA87R57-Y0.25KW，SFA87R57-Y0.37KW，SFA87R57-Y0.55KW，SFA87R57-Y0.75KW，SFA87R57-Y1.1KW，SFA87R57-Y1.5KW，SFA87R57-Y63M4，SFA87R57-Y71M4，SFA87R57-Y80M4，SFA87R57-Y90M4，SFA87RF57-Y63M4，SFA87RF57-Y71M4，SFA87RF57-Y80M4，SFA87RF57-Y90M4，SFA87RF57-YB63M4，SFA87RF57-YB71M4，SFA87RF57-YB80M4，SFA87RF57-YB90S4，SFA87RF57-YDP63M4，SFA87RF57-YDP71M4，SFA87RF57-YDP80M4，SFA87RF57-YDP90S4，SFA87RF57-YE63M4，SFA87RF57-YE71M4，SFA87RF57-YE80M4，SFA87RF57-YE90S4，SFA87RF57-YEJ63M4，SFA87RF57-YEJ71M4，SFA87RF57-YEJ80M4，SFA87RF57-YEJ90S4，SFA87RF57-YEJB63M4，SFA87RF57-YEJB71M4，SFA87RF57-YEJB80M4，SFA87RF57-YEJB90S4，SFA87RF57-YP63M4，SFA87RF57-YP71M4，SFA87RF57-YP80M4，SFA87RF57-YP90S4，SFA87RF57-YPB63M4，SFA87RF57-YPB71M4，SFA87RF57-YPB80M4，SFA87RF57-YPB90S4，SFA87RF57-YPE63M4，SFA87RF57-YPE71M4，SFA87RF57-YPE80M4，SFA87RF57-YPE90S4，SFA87RF57-YS63M4，SFA87RF57-YS71M4，SFA87RF57-YS80M4，SFA87RF57-YS90S4，SFA87RF57-YVB63M4，SFA87RF57-YVB71M4，SFA87RF57-YVB80M4，SFA87RF57-YVB90S4，SFA87RF57-YVP63M4，SFA87RF57-YVP71M4，SFA87RF57-YVP80M4，SFA87RF57-YVP90S4，SFA87RF57-YVPEJ63M4，SFA87RF57-YVPEJ71M4，SFA87RF57-YVPEJ80M4，SFA87RF57-YVPEJ90S4，XDFA87R57-Y0.12KW，XDFA87R57-Y0.18KW，XDFA87R57-Y0.25KW，XDFA87R57-Y0.37KW，XDFA87R57-Y0.55KW，XDFA87R57-Y0.75KW，XDFA87R57-Y1.1KW，XDFA87R57-Y1.5KW，XDFA87R57-Y63M4，XDFA87R57-Y71M4，XDFA87R57-Y80M4，XDFA87R57-Y90M4，XDFA87RF57-Y63M4，XDFA87RF57-Y71M4，XDFA87RF57-Y80M4，XDFA87RF57-Y90M4，XDFA87RF57-YB63M4，XDFA87RF57-YB71M4，XDFA87RF57-YB80M4，XDFA87RF57-YB90S4，XDFA87RF57-YDP63M4，XDFA87RF57-YDP71M4，XDFA87RF57-YDP80M4，XDFA87RF57-YDP90S4，XDFA87RF57-YE63M4，XDFA87RF57-YE71M4，XDFA87RF57-YE80M4，XDFA87RF57-YE90S4，XDFA87RF57-YEJ63M4，XDFA87RF57-YEJ71M4，XDFA87RF57-YEJ80M4，XDFA87RF57-YEJ90S4，XDFA87RF57-YEJB63M4，XDFA87RF57-YEJB71M4，XDFA87RF57-YEJB80M4，XDFA87RF57-YEJB90S4，XDFA87RF57-YP63M4，XDFA87RF57-YP71M4，XDFA87RF57-YP80M4，XDFA87RF57-YP90S4，XDFA87RF57-YPB63M4，XDFA87RF57-YPB71M4，XDFA87RF57-YPB80M4，XDFA87RF57-YPB90S4，XDFA87RF57-YPE63M4，XDFA87RF57-YPE71M4，XDFA87RF57-YPE80M4，XDFA87RF57-YPE90S4，XDFA87RF57-YS63M4，XDFA87RF57-YS71M4，XDFA87RF57-YS80M4，XDFA87RF57-YS90S4，XDFA87RF57-YVB63M4，XDFA87RF57-YVB71M4，XDFA87RF57-YVB80M4，XDFA87RF57-YVB90S4，XDFA87RF57-YVP63M4，XDFA87RF57-YVP71M4，XDFA87RF57-YVP80M4，XDFA87RF57-YVP90S4，XDFA87RF57-YVPEJ63M4，XDFA87RF57-YVPEJ71M4，XDFA87RF57-YVPEJ80M4，XDFA87RF57-YVPEJ90S4，FWA87RW57-Y0.12KW，FWA87RW57-Y0.18KW，FWA87RW57-Y0.25KW，FWA87RW57-Y0.37KW，FWA87RW57-Y0.55KW，FWA87RW57-Y0.75KW，FWA87RW57-Y1.1KW，FWA87RW57-Y1.5KW，FWA87RW57-Y63M4，FWA87RW57-Y71M4，FWA87RW57-Y80M4，FWA87RW57-Y90M4，FWA87RWFA57-Y63M4，FWA87RWFA57-Y71M4，FWA87RWFA57-Y80M4，FWA87RWFA57-Y90M4，FWA87RWFA57-YB63M4，FWA87RWFA57-YB71M4，FWA87RWFA57-YB80M4，FWA87RWFA57-YB90S4，FWA87RWFA57-YDP63M4，FWA87RWFA57-YDP71M4，FWA87RWFA57-YDP80M4，FWA87RWFA57-YDP90S4，FWA87RWFA57-YE63M4，FWA87RWFA57-YE71M4，FWA87RWFA57-YE80M4，FWA87RWFA57-YE90S4，FWA87RWFA57-YEJ63M4，FWA87RWFA57-YEJ71M4，FWA87RWFA57-YEJ80M4，FWA87RWFA57-YEJ90S4，FWA87RWFA57-YEJB63M4，FWA87RWFA57-YEJB71M4，FWA87RWFA57-YEJB80M4，FWA87RWFA57-YEJB90S4，FWA87RWFA57-YP63M4，FWA87RWFA57-YP71M4，FWA87RWFA57-YP80M4，FWA87RWFA57-YP90S4，FWA87RWFA57-YPB63M4，FWA87RWFA57-YPB71M4，FWA87RWFA57-YPB80M4，FWA87RWFA57-YPB90S4，FWA87RWFA57-YPE63M4，FWA87RWFA57-YPE71M4，FWA87RWFA57-YPE80M4，FWA87RWFA57-YPE90S4，FWA87RWFA57-YS63M4，FWA87RWFA57-YS71M4，FWA87RWFA57-YS80M4，FWA87RWFA57-YS90S4，FWA87RWFA57-YVB63M4，FWA87RWFA57-YVB71M4，FWA87RWFA57-YVB80M4，FWA87RWFA57-YVB90S4，FWA87RWFA57-YVP63M4，FWA87RWFA57-YVP71M4，FWA87RWFA57-YVP80M4，FWA87RWFA57-YVP90S4，FWA87RWFA57-YVPEJ63M4，FWA87RWFA57-YVPEJ71M4，FWA87RWFA57-YVPEJ80M4，FWA87RWFA57-YVPEJ90S4，FA89R59-Y0.12KW，FA89R59-Y0.18KW，FA89R59-Y0.25KW，FA89R59-Y0.37KW，FA89R59-Y0.55KW，FA89R59-Y0.75KW，FA89R59-Y1.1KW，FA89R59-Y1.5KW，FA89R59-Y63M4，FA89R59-Y71M4，FA89R59-Y80M4，FA89R59-Y90M4，FA89RF59-Y63M4，FA89RF59-Y71M4，FA89RF59-Y80M4，FA89RF59-Y90M4，FA89RF59-YB63M4，FA89RF59-YB71M4，FA89RF59-YB80M4，FA89RF59-YB90S4，FA89RF59-YDP63M4，FA89RF59-YDP71M4，FA89RF59-YDP80M4，FA89RF59-YDP90S4，FA89RF59-YE63M4，FA89RF59-YE71M4，FA89RF59-YE80M4，FA89RF59-YE90S4，FA89RF59-YEJ63M4，FA89RF59-YEJ71M4，FA89RF59-YEJ80M4，FA89RF59-YEJ90S4，FA89RF59-YEJB63M4，FA89RF59-YEJB71M4，FA89RF59-YEJB80M4，FA89RF59-YEJB90S4，FA89RF59-YP63M4，FA89RF59-YP71M4，FA89RF59-YP80M4，FA89RF59-YP90S4，FA89RF59-YPB63M4，FA89RF59-YPB71M4，FA89RF59-YPB80M4，FA89RF59-YPB90S4，FA89RF59-YPE63M4，FA89RF59-YPE71M4，FA89RF59-YPE80M4，FA89RF59-YPE90S4，FA89RF59-YS63M4，FA89RF59-YS71M4，FA89RF59-YS80M4，FA89RF59-YS90S4，FA89RF59-YVB63M4，FA89RF59-YVB71M4，FA89RF59-YVB80M4，FA89RF59-YVB90S4，FA89RF59-YVP63M4，FA89RF59-YVP71M4，FA89RF59-YVP80M4，FA89RF59-YVP90S4，FA89RF59-YVPEJ63M4，FA89RF59-YVPEJ71M4，FA89RF59-YVPEJ80M4，FA89RF59-YVPEJ90S4。

FA89R59減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.hsm-hk.com/product/list-faxiliejiansuji-cn.html

推薦型號：F89減速機
